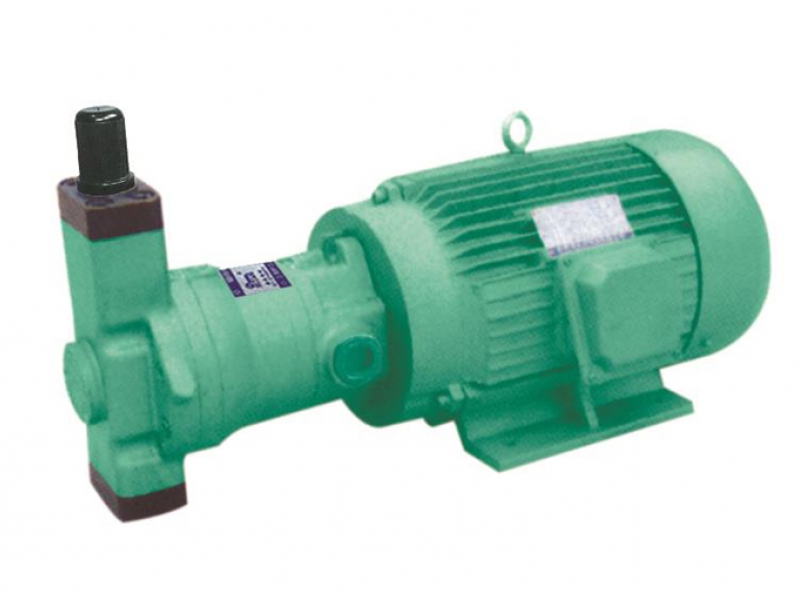

當前位置：CY-Y系列油泵電機組
發表時間：2023-07-28 15:10 閱讀次數：818
|
油泵電機組 型號 |
電機功率 Kw |
額定轉速 r/min |

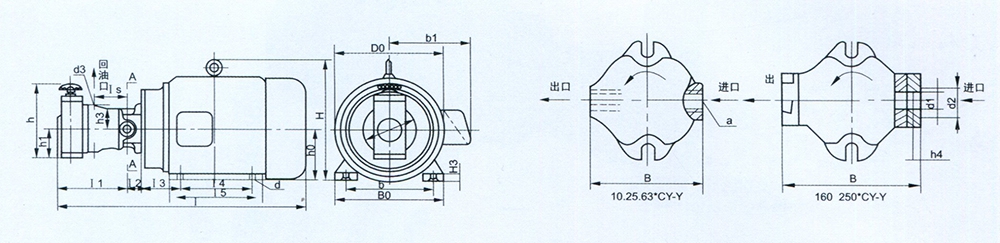

外形安裝尺寸 | |||||||||||||||
| I1 | I2 | I3 | I4 | I5 | I6 | L | HO | H | h5 | h6 | DO | BO | b | bI | b0 | |||
| 10*CY-Y112M-6 | 2.2 | 1000 | 186 | 40 | 92 | 140 | 85 | 180 | 586 | 112 | 265 | 71 | 15 | 240 | 245 | 190 | 190 | 12 |
| 10*CY-Y132S-6 | 3.0 | 1000 | 186 | 40 | 107 | 140 | 85 | 200 | 636 | 132 | 315 | 71 | 18 | 275 | 280 | 216 | 210 | 12 |
| 10*CY-Y112M1-6 | 4.0 | 1000 | 186 | 40 | 107 | 178 | 85 | 238 | 671 | 132 | 315 | 71 | 18 | 275 | 280 | 216 | 210 | 12 |
| 10*CY-Y112M2-6 | 5.5 | 1000 | 186 | 40 | 107 | 178 | 85 | 238 | 671 | 132 | 315 | 71 | 18 | 275 | 280 | 216 | 210 | 12 |
| 10*CY-Y160M-6 | 7.5 | 1000 | 186 | 40 | 119 | 210 | 85 | 270 | 726 | 160 | 385 | 71 | 20 | 335 | 330 | 254 | 265 | 15 |
| 10*CY-Y100L2-4 | 3.0 | 1500 | 186 | 40 | 74 | 140 | 85 | 176 | 556 | 100 | 245 | 71 | 14 | 345 | 205 | 160 | 180 | 12 |
| 10*CY-Y112M-4 | 4.0 | 1500 | 186 | 40 | 92 | 140 | 85 | 180 | 586 | 112 | 265 | 71 | 15 | 240 | 245 | 190 | 190 | 12 |
| 10*CY-Y132S-4 | 5.5 | 1500 | 186 | 40 | 107 | 140 | 85 | 200 | 636 | 132 | 315 | 71 | 18 | 275 | 280 | 216 | 210 | 12 |
| 10*CY-Y132M-4 | 7.5 | 1500 | 186 | 40 | 107 | 178 | 85 | 238 | 671 | 132 | 315 | 71 | 18 | 275 | 280 | 216 | 210 | 12 |
| 10*CY-Y160M-4 | 11 | 1500 | 186 | 40 | +119 | 210 | 85 | 270 | 671 | 160 | 385 | 71 | 20 | 335 | 330 | 254 | 265 | 15 |
| 25*CY-Y132S-6 | 3.0 | 1000 | 230 | 45 | 107 | 140 | 112 | 200 | 685 | 132 | 315 | 83 | 18 | 275 | 280 | 216 | 210 | 12 |
| 25*CY-Y132M1-6 | 4.0 | 1000 | 230 | 45 | 107 | 178 | 112 | 238 | 720 | 132 | 315 | 83 | 18 | 275 | 280 | 216 | 210 | 12 |
| 25*CY-Y132M2-6 | 5.5 | 1000 | 230 | 45 | 107 | 178 | 112 | 238 | 720 | 132 | 315 | 83 | 18 | 275 | 280 | 216 | 210 | 12 |
| 25*CY-Y160M-6 | 7.5 | 1000 | 230 | 45 | 119 | 210 | 112 | 238 | 820 | 160 | 385 | 83 | 20 | 335 | 330 | 254 | 265 | 15 |
| 25*CY-Y160L-6 | 11 | 1000 | 230 | 45 | 119 | 254 | 112 | 270 | 865 | 160 | 385 | 83 | 20 | 335 | 330 | 254 | 265 | 15 |
| 25*CY-Y180L-6 | 15 | 1000 | 230 | 45 | 133 | 279 | 112 | 314 | 935 | 180 | 430 | 83 | 22 | 380 | 355 | 279 | 285 | 15 |
| 25*CY-Y112M-4 | 4.0 | 1500 | 230 | 45 | 92 | 140 | 112 | 180 | 635 | 112 | 265 | 83 | 15 | 240 | 245 | 190 | 190 | 12 |
| 25*CY-Y132S-4 | 5.5 | 1500 | 230 | 45 | 107 | 140 | 112 | 200 | 685 | 132 | 315 | 83 | 18 | 275 | 280 | 216 | 210 | 12 |
| 25*CY-Y132M-4 | 7.5 | 1500 | 230 | 45 | 107 | 178 | 112 | 238 | 720 | 132 | 315 | 83 | 18 | 275 | 280 | 216 | 210 | 12 |
| 25*CY-Y112M-4 | 11 | 1500 | 230 | 45 | 119 | 210 | 112 | 270 | 820 | 160 | 385 | 83 | 20 | 335 | 330 | 254 | 265 | 15 |
| 25*CY-Y160M-4 | 18.5 | 1500 | 230 | 45 | 133 | 241 | 112 | 311 | 885 | 180 | 430 | 83 | 22 | 380 | 355 | 279 | 285 | 15 |
| 25*CY-Y180M-4 | 22 | 1500 | 230 | 45 | ||||||||||||||
